Most warehouse pallet rack layouts fall into a small number of repeatable patterns once you've seen a few. The dimensions change, the SKU profile changes, and the operational tempo changes, but the underlying configurations recur. Below are eight common patterns with diagrams, target position counts, and notes on when to use each.
Each of these can be built in RackCity in minutes. If a similar layout would help your project, you can use these as starting points.

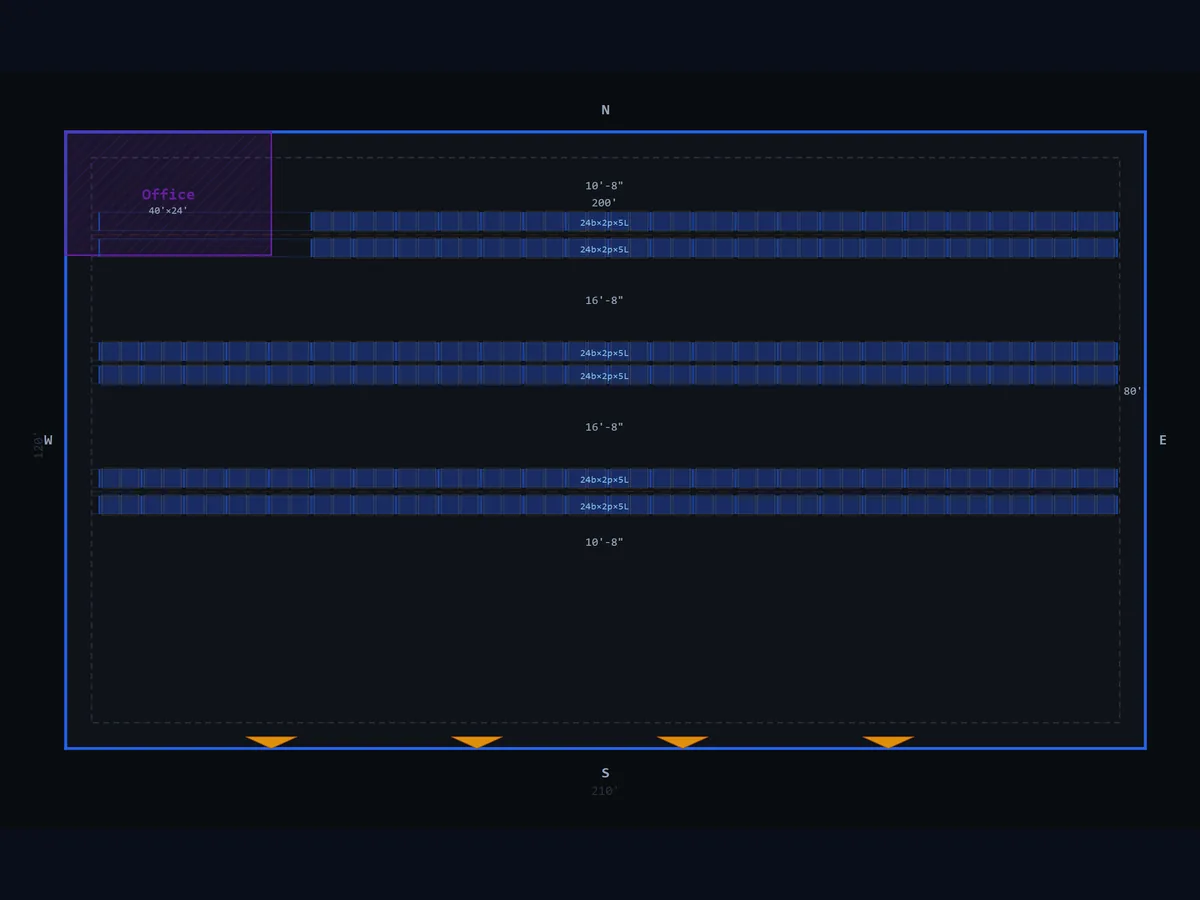

Small 3PL Fulfillment
Standard back-to-back layout, 96" beams, 10-ft aisles. Designed for general pallet storage with one dock wall and a small office at front. The most common 3PL starting layout.

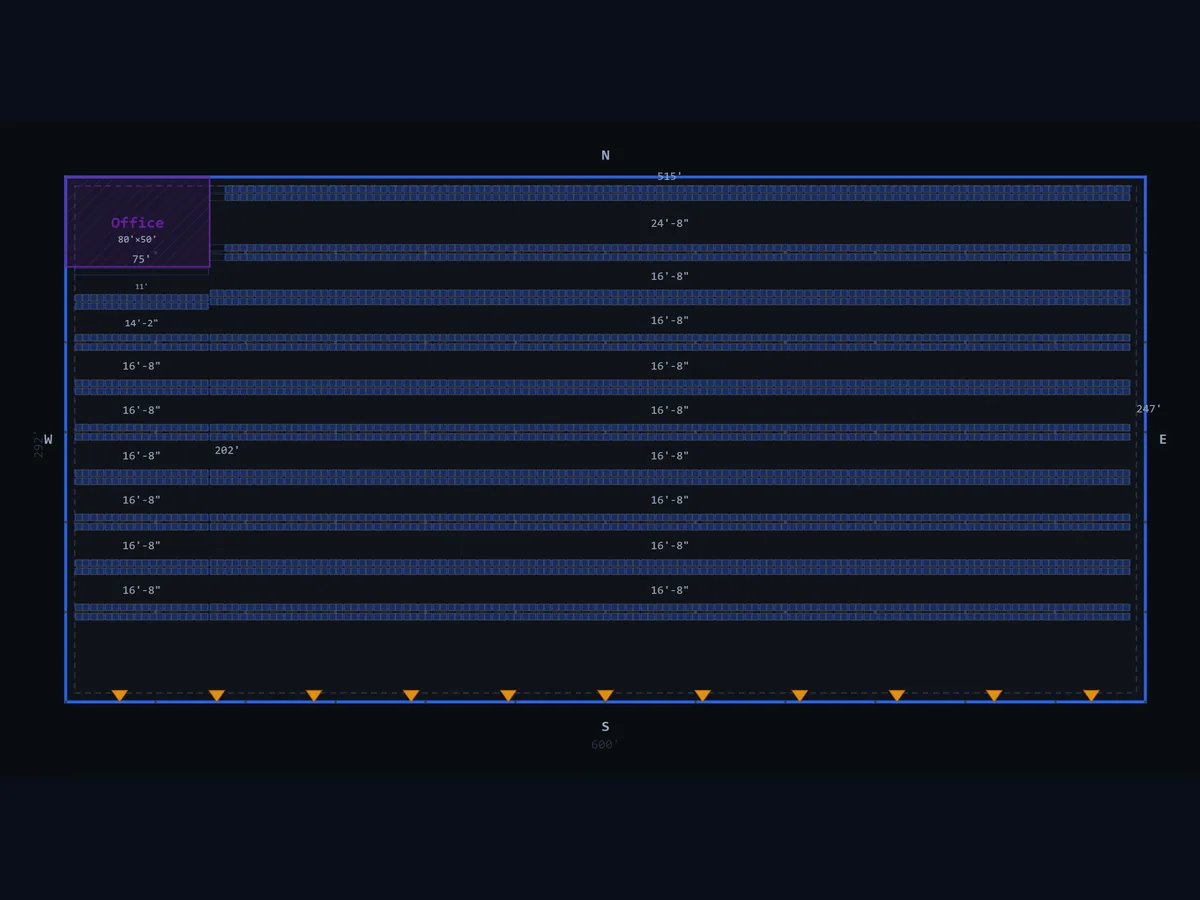

Large Distribution Center
Multi-zone DC with dock area, B2B reserve storage, and a smaller selective pick zone. Dead bays accounted for at column lines. Speed bays along the dock wall.

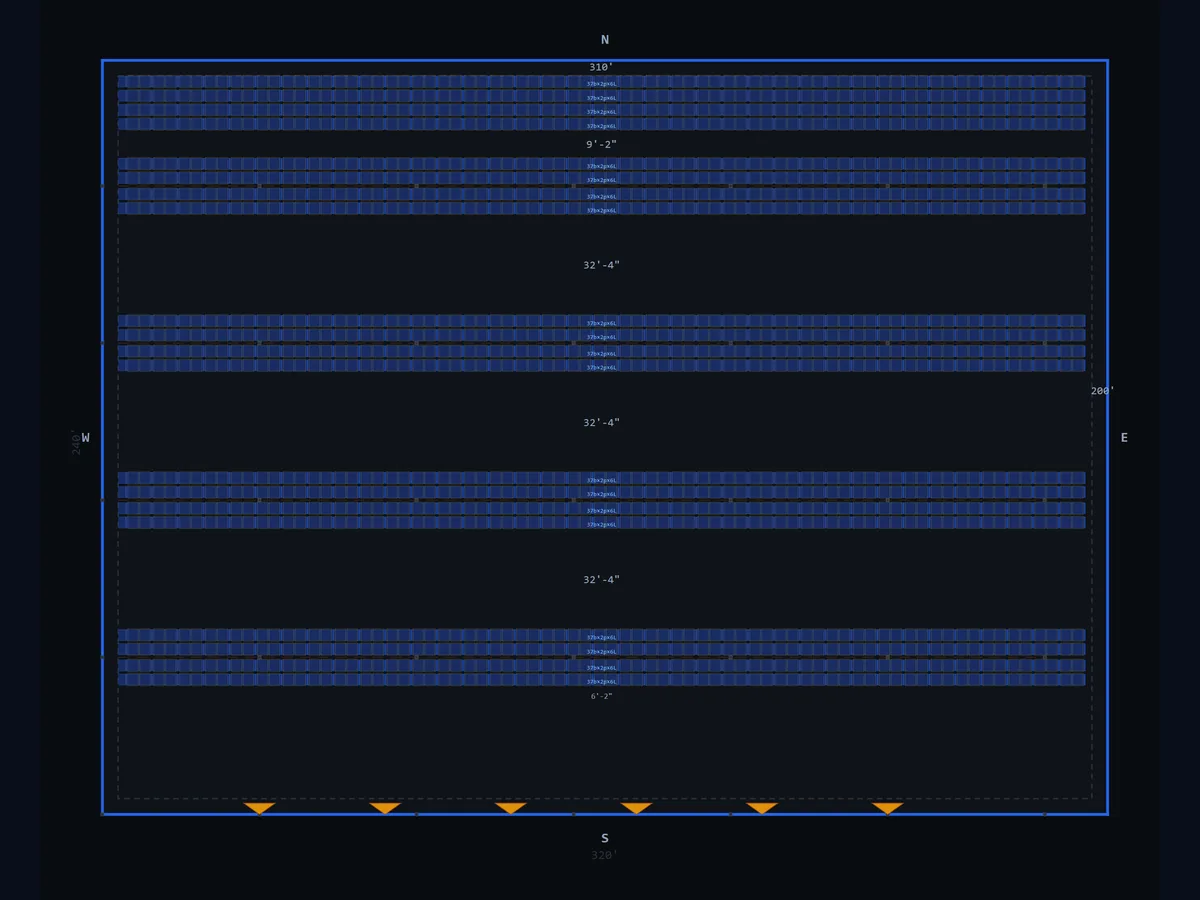

Cold Storage (Double-Deep)
Double-deep configuration to maximize density. Narrow aisles for reach trucks. Common in food cold storage where SKU velocity is moderate and density-per-square-foot is paramount.

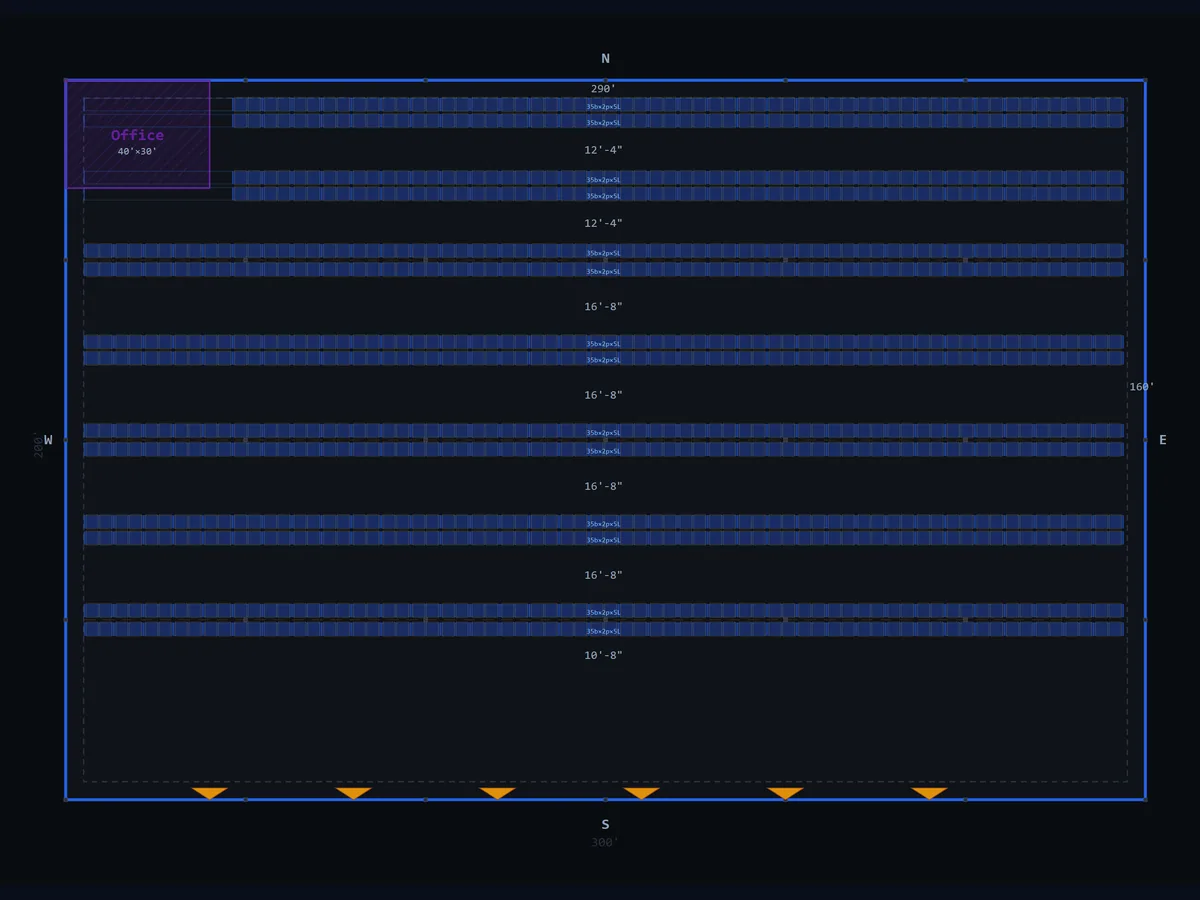

E-commerce Fulfillment
Reserve storage in back (B2B), selective single-row pick zone in front, speed bays along the dock wall for staging. Tuned for SKU velocity and pick-line efficiency.

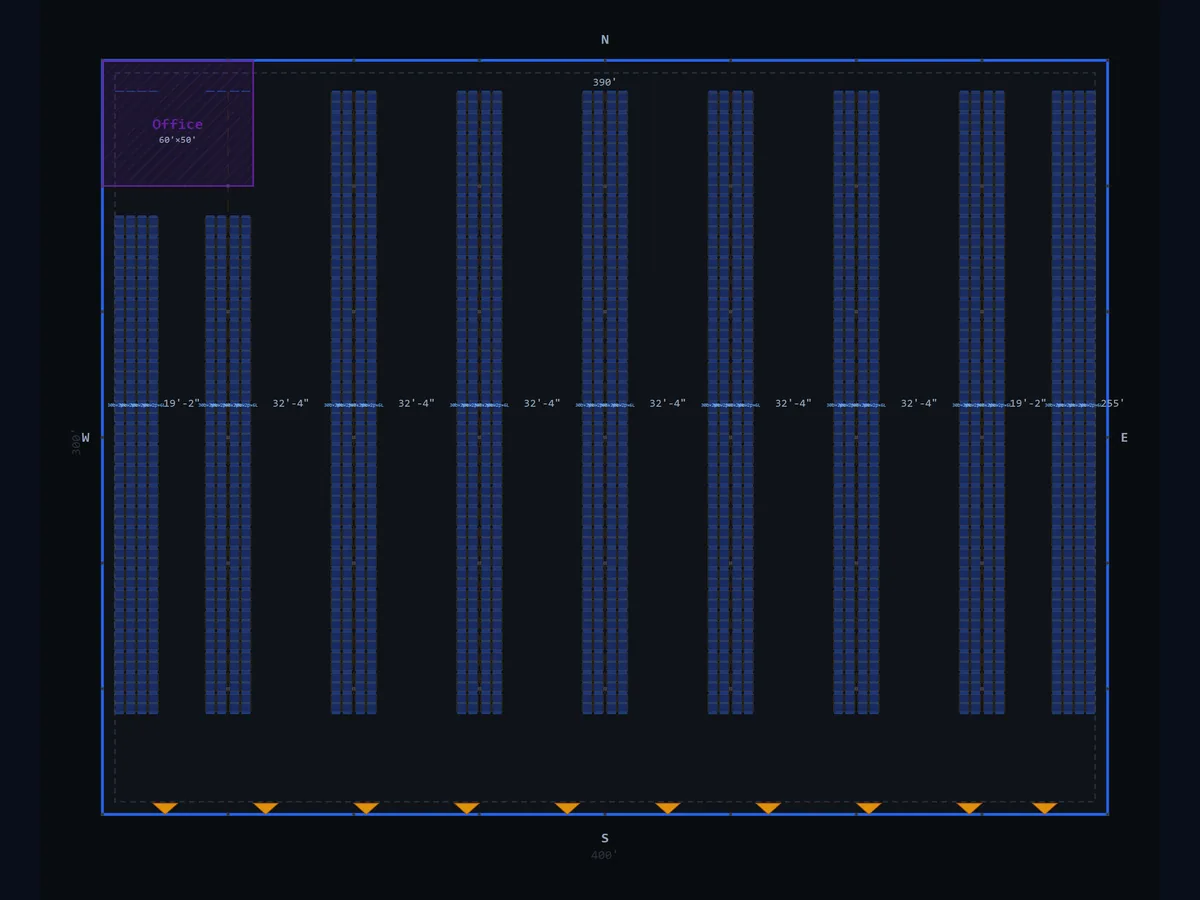

Food Distribution
FIFO-friendly double-deep, vertical orientation perpendicular to the dock wall for fast inbound-to-storage flow. Office at front, dock along full back wall.

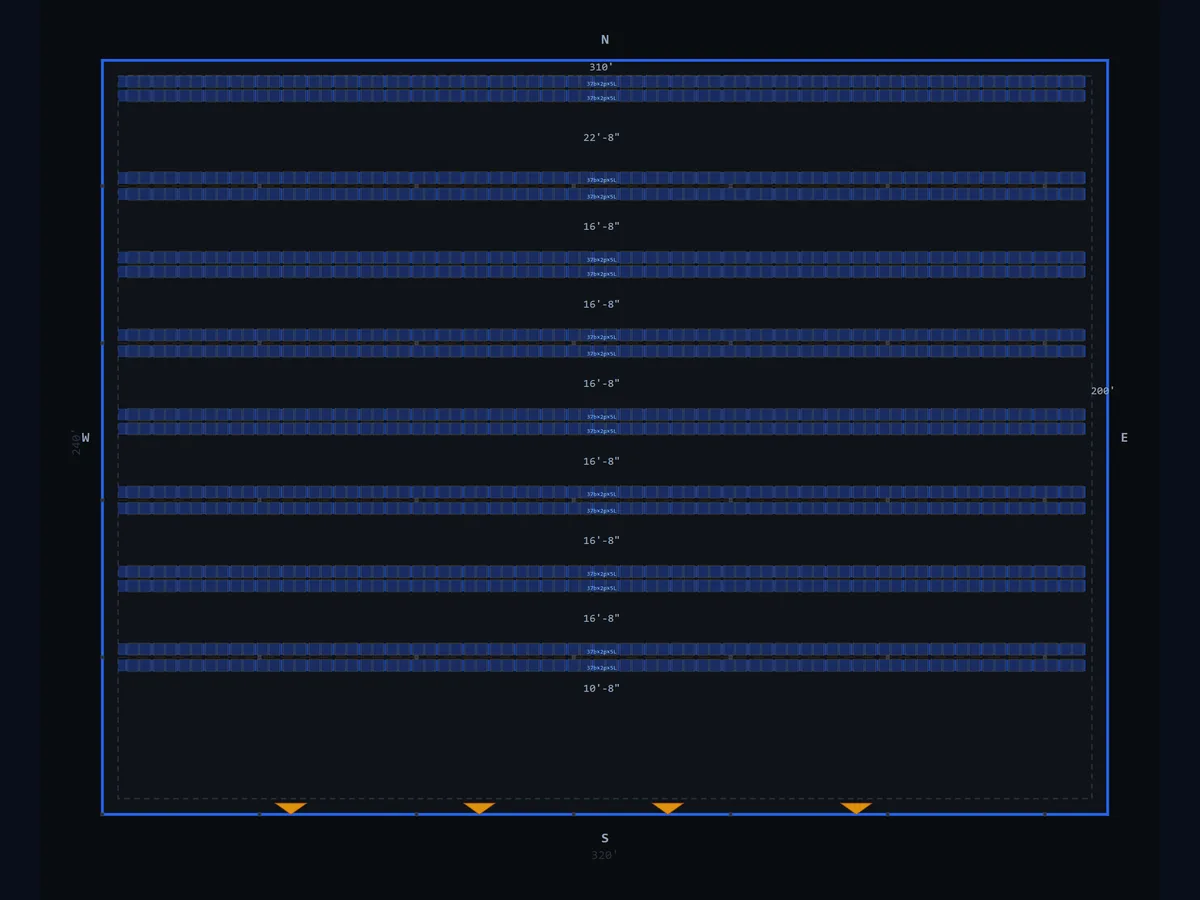

Heavy / Wide-Aisle
Wide aisles (12–13 ft) for counterbalance forklifts handling oversize pallets. B2B with column burying in the flue space. Lower density, higher throughput.

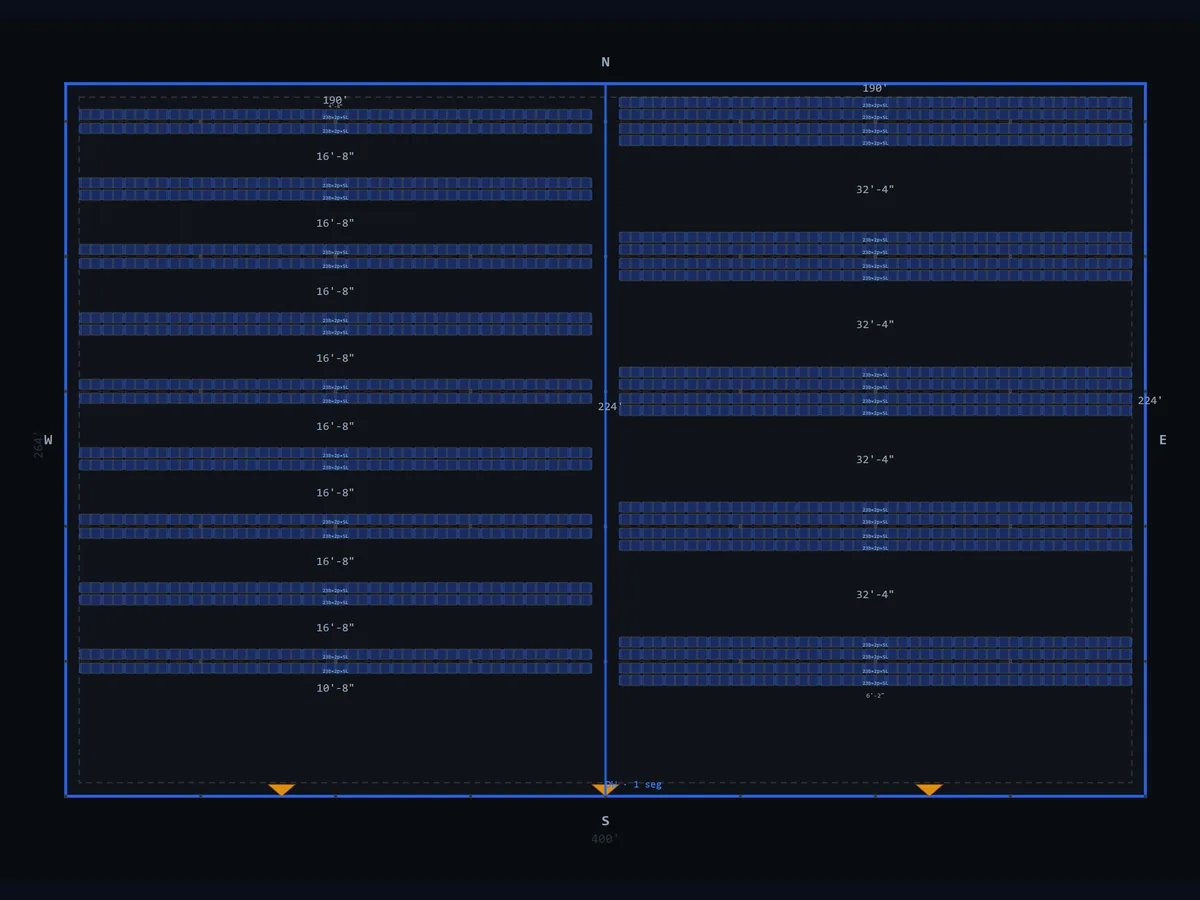

Multi-Tenant 3PL
Demising wall separates two tenants. Left side: B2B selective for client A. Right side: double-deep for client B. Per-zone rack configurations are critical for shared facilities.

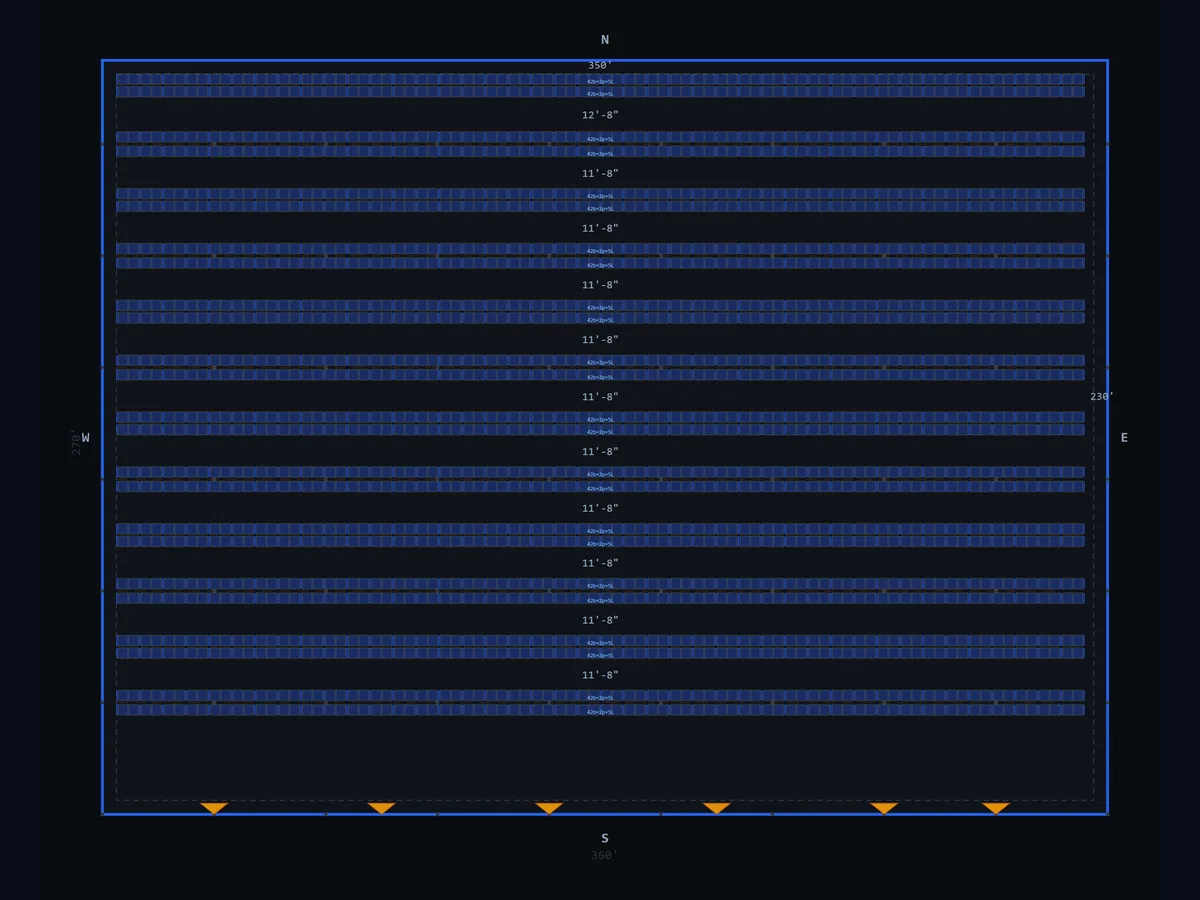

Retrofit with Column Burying
Existing column grid on 20-ft centers. Racks aligned so columns land in the flue space (buried inside back-to-back pairs) rather than wasting aisle space. Critical for retrofitting existing buildings.
The math behind these layouts
The single most useful number for comparing warehouse rack layouts is square feet per pallet position — total building area divided by total positions. It rolls aisle width, rack depth, beam levels, and lost space (docks, offices, dead bays) into one density figure you can sanity-check any design against. Here is how the eight examples above stack up:
| Layout | Building | Pallet positions | Sq ft / position | Rack configuration | Typical aisle |
|---|---|---|---|---|---|
| Small 3PL fulfillment | 25,000 sqft | ~1,800 | 13.9 | Back-to-back selective | 10 ft |
| Large distribution center | 175,000 sqft | ~14,500 | 12.1 | B2B reserve + selective pick zone | 10 ft |
| Cold storage | 80,000 sqft | ~6,200 | 12.9 | Double-deep | 9 ft (reach truck) |
| E-commerce fulfillment | 60,000 sqft | ~3,400 | 17.6 | B2B reserve + single-row pick | 10 ft |
| Food distribution | 120,000 sqft | ~9,800 | 12.2 | Double-deep, FIFO flow | 9 ft (reach truck) |
| Heavy / wide-aisle | 90,000 sqft | ~3,800 | 23.7 | B2B selective, oversize pallets | 12–13 ft (counterbalance) |
| Multi-tenant 3PL | 110,000 sqft | ~7,200 | 15.3 | B2B selective + double-deep zones | 10 ft / 9 ft |
| Retrofit, column burying | 100,000 sqft | ~6,800 | 14.7 | B2B selective on 20-ft column grid | 10 ft |
Two patterns worth noticing. First, well-designed selective layouts converge on 12–15 sq ft per position (at 4 beam levels), and double-deep buys density mainly when the building shape or column grid is working against you. Second, the outliers are explained by operations, not by bad design: the e-commerce layout "wastes" space on a pick line because pick-rate pays for it, and the wide-aisle layout trades density for counterbalance forklifts and oversize pallets. If your draft layout lands far outside these ranges without an operational reason, something is usually wrong — too-wide aisles, unburied columns, or rack rows fighting the column grid.
How to pick the right layout for your project
The right layout depends on three things: SKU profile (how many distinct items, how fast each moves), pallet dimensions (standard 48"×40" GMA pallets vs oversize), and forklift fleet (counterbalance vs reach truck vs narrow aisle).
SKU velocity
High velocity SKUs (fast-moving) benefit from selective single-row racks where every pallet is directly accessible. Low velocity SKUs benefit from dense storage (double-deep, drive-in) because the time penalty of less-direct access matters less.
Density vs accessibility
This is the eternal trade-off. Double-deep packs ~30% more pallets per square foot than B2B selective, but each pallet is reachable only via the front pallet — so SKU selection slows down. Pick the configuration that matches your operations, not just your real estate.
Forklift class
Aisle width is dictated by your forklift fleet. Standard counterbalance wants 12 ft. Reach trucks want 8–9 ft. Turret trucks and very-narrow-aisle (VNA) trucks want 5–6 ft. If you can change the forklift, you can dramatically change the layout.
Warehouse rack layout FAQ
How much space do you need between pallet racks?
Aisle width is set by the forklift: 12–13 ft for standard counterbalance trucks, 8–10 ft for reach trucks, and 5–6 ft for very-narrow-aisle (VNA) turret trucks. Between the backs of two rack rows in a back-to-back pair, leave a 6–12 inch flue space (set by row spacers) — it's required for sprinkler coverage and is also where building columns get buried.
How many pallet positions fit in 10,000 square feet?
With back-to-back selective racking at 4 beam levels and 10-ft aisles, plan on roughly 700–850 pallet positions per 10,000 sqft (12–15 sqft per position). Double-deep pushes that toward 900–1,100 at the cost of direct access to every pallet. Docks, offices, staging, and building columns all eat into the number — which is why counting positions from a real layout beats a rule of thumb.
What is the most common warehouse pallet rack layout?
Back-to-back selective rows with 96-inch beams (two 48"×40" GMA pallets per beam level), 42-inch-deep frames, and aisles sized to the forklift fleet. It's the default because every pallet stays directly accessible and it accepts almost any SKU profile. The other configurations — double-deep, drive-in, pick-line hybrids — are deviations you make for a specific operational reason.
How do you lay out pallet racking in a warehouse?
Start from the fixed constraints: building dimensions, column grid, dock doors, and fire exits. Orient rack rows so building columns land in the flue space between back-to-back pairs rather than in aisles. Size aisles to your forklift class, keep speed bays along the dock wall for staging, then choose selective vs. double-deep per zone based on SKU velocity. Then iterate — compare the position counts of a few variants instead of committing to the first drawing.
Any of these layouts can be built in RackCity in minutes. We strongly recommend building three variants (B2B selective vs double-deep vs mixed) for any new warehouse, then picking based on the actual position counts and aisle compliance, not on intuition.
